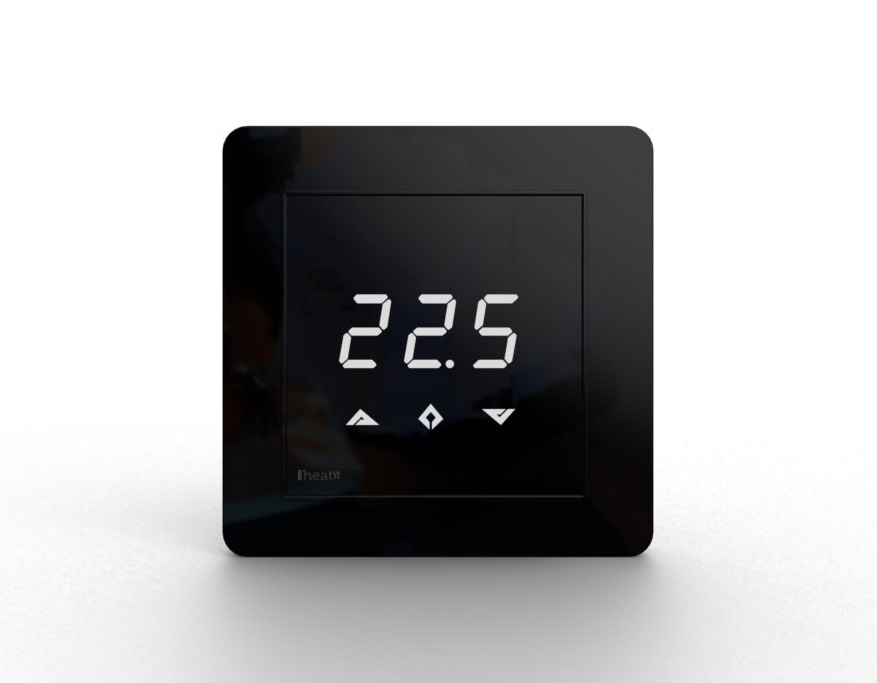

Heatit Z-TRM3 thermostat 3600W 16A Black
Heatit Z-TRM3 thermostat 3600W 16A Black
Heatit Z-TRM3 is an electronic thermostat for electrical floor heating, designed to be mounted in a standard flush box. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems. Heatit Z-TRM3 is equipped with a single-pole switch and fits into System 55 frames. The thermostat can withstand a load of max 16A /3600W at 230V. The thermostat may be used for water based heating if the thermostat is linked to the Heatit Z-Water.
Other Details :
- Product : Heatit Z-TRM3 thermostat 3600W 16A Black
- Code : 54 305 98
- Availabiltity : Available
- Series : Heatit
FEATURES
Floor sensor
Internal room sensor
External room sensor (connected by cable)
Temperature limiter
SmartStart
Weekly program/setback via gateway
Temperature read out in gateway
Firmware update (OTA)
Power metering
Relay status LED
Single pole switch
Lock mode/child lock
Calibration
5 associations
Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class
This product is a security-enabled Z-Wave Plus product with encryption. The product must be used with a security-enabled Z-Wave Controller in order to fully utilize the product.
TECHNICAL DATA
Protocol Z-Wave – 868,4MHz
Chip Z-Wave 500 chip
Rated voltage 230V 50/60Hz
Max load 3600W (resistive load) 750W self-limiting heating cable
Max current 16A
Power consumption <2,0W
Ambient temperature 0°C to 40°C (during operation)
Temperature range 5°C to 40°C
Hysteresis 0,3°C to 3,0°C (default 0,5°C)
Compatible with NTC sensors with values 10, 12, 15, 22, 33 and 47 kΩ @ 25°C
IP Code IP 21
Approvals Z-Wave Plus, CE, EN 60730-1, EN 60730-2-9, EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU
-
